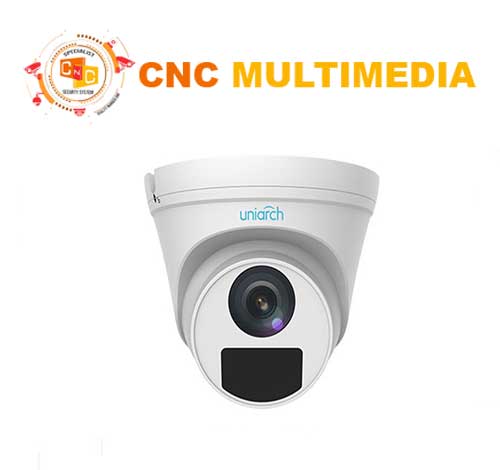

Uniarch IPC-T122-PF28

Uniarch IPC-T122-PF28

Camera
Sensor 1/2.9″, progressive scan, CMOS
Lens 2.8mm@F2.1 4.0mm@F2.1
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 45.0 18.0 9.0 4.5
4.0 64.3 25.7 12.9 6.4
Angle of View (H) 107.8° 82.0°
Angle of View (V) 56.7° 41.4°
Angle of View (O) 140.1° 100.9°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.02Lux (F2.1, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps;
Sub Stream: 4CIF (704*576), Max 25fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE
Power consumption: Max 3.5W
Dimensions (Ø x H) Ø118.1 x 96.6mm (Ø4.6” x 3.8”)
Weight 0.27kg (0.60lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
