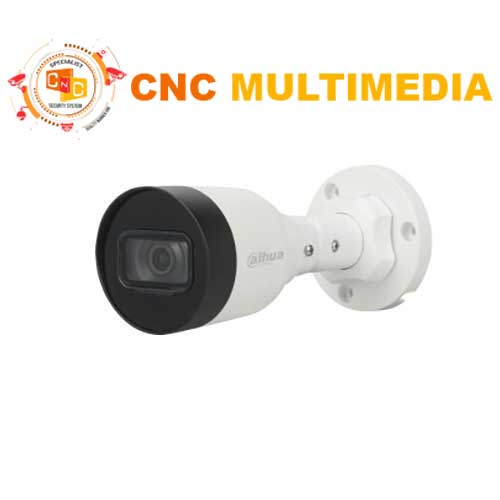

Dahua IPC-HFW1230S1P-A-S4

Camera Dahua IPC-HFW1230S1P-A-S4

Image Sensor

1/2.8” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

More than 56dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F2.0/

F2.0

Angle of View

2.8 mm: Horizontal: H: 102°; V: 54°; D: 120°

3.6 mm: Horizontal: H: 88°; V: 47°; D: 104

Focus Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.64 ft)

15.4 m (50.52 ft)

7.7 m (25.26 ft)

3.9 m (12.80 ft)

3.6 mm

49.7 m (163.06 ft)

19.9 m (65.29 ft)

9.9 m (32.48 ft)

5.0 m (16.40 ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Streaming Capability

2 Streams

Resolution

Frame Rate

Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal+Plastic

Dimensions

162.6 mm × 70 mm× 70 mm (6.4″ × 2.8″ × 2.8″) (L × W × H)

Net Weight

0.22 kg (0.5 lb)

Gross Weight

0.34 kg (0.7 lb)
