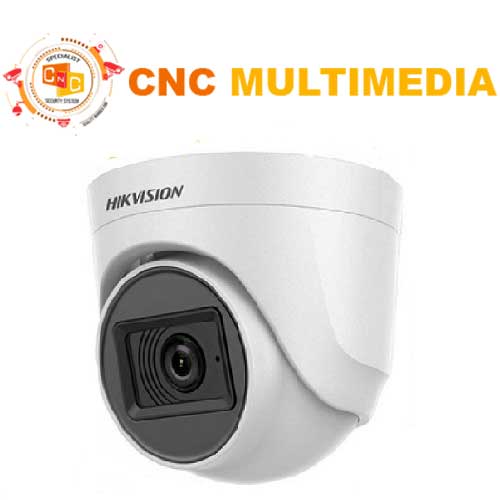

Hikvision DS-2CE76D0T-ITPFS
Camera
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50, 000 s |
NTSC: 1/30 s to 1/50, 000 s | |
Day & Night | ICR |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360° |
Signal System | PAL/NTSC |
Lens
Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
Focal Length & FOV | 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° |
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° | |
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8 | |
Lens Mount | M12 |
Image Parameters Switch | STD/HIGH-SAT |
Image Settings | Brightness, Sharpness, Mirror, Smart IR |
Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps |
CVI: 1080P@30fps, 1080P@25fps | |
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps | |
CVBS: PAL/NTSC | |
Day/Night Mode | Auto/Color/BW (Black and White) |
Wide Dynamic Range (WDR) | Digital WDR |
White Balance | ATW/MANUAL |
AGC | Support |
Interface
Video Output | Switchable TVI/AHD/CVI/CVBS |
General
Material | Plastic |
Dimension | Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″) |
Approx. 140.5 g (0.31 lb.) | |
Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
Communication | HIKVISION-C |
Language | English |
Power Supply | 12 VDC ± 25% |
*You are recommended to use one power adapter to supply the power for one camera. | |
Consumption | Max. 2.7 W |
IR Range | Up to 20 m |
