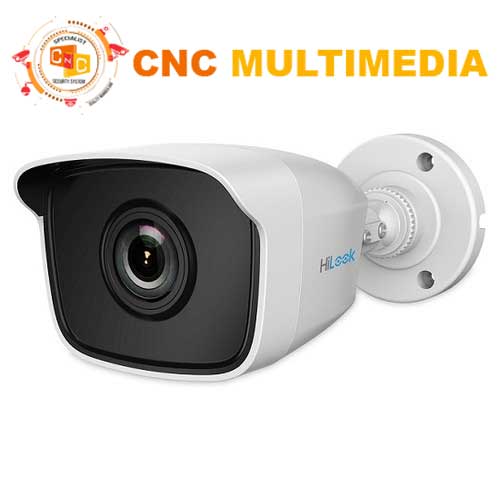

Hilook THC-B120-PC

Hilook THC-B120-PC

• Camera
• Image Sensor2 MP CMOS image sensor
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

  3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

• Lens MountM12

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 20 m

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsAGC;Brightness;Smart IR;Mirror;Sharpness
• Frame Rate

  PAL: 1080p @ 25 fps

  NTSC: 1080p @ 30 fps

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC
• Noise Reduction2D DNR

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Power12 VDC ±15%, Max. 2.1 W
• MaterialPlastic
• Dimension165 mm × 62 mm × 58 mm (6.50″ × 2.44″ × 2.28″)
• Weight400 g (0.88 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

• Approval
• ProtectionIP66
