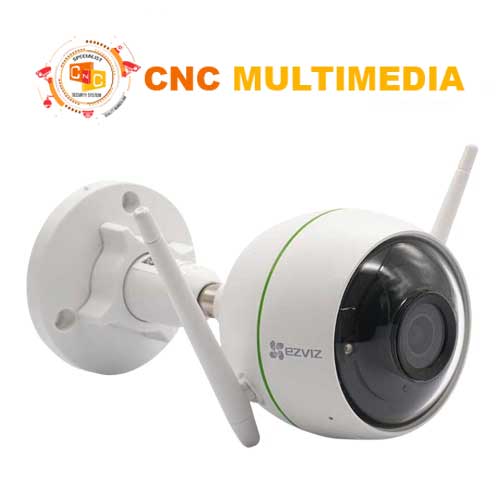

EZVIZ C3WN
Specifications
| Model Parameters | |
|---|---|
| Name | C3WN |
| Model | CS-CV310-A0-1C2WFR |
| Camera | |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Minimum Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F1.8, view angle: 95° (Horizontal), 110°(Diagonal) 4mm@ F2.0, view angle: 81° (Horizontal), 94°(Diagonal) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate |
| Auto Bit Rate | Self-adaptive |
| Image | |
| Max. Resolution | 1920 x 1080 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Interface | |
| Storage | Micro SD card (Max. 256G) |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Network | |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud proprietary protocol |
| Interface Protocol | EZVIZ Cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Max. Bitrate | 2Mbps |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| General | |
| Power Supply | DC 12V/1A |
| Power Consumption | Max. 6W |
| IP Grade | IP66 |
| IR Range | Max. 30 meters (98.43ft) |
| Product Dimensions | 72mm x 72mm x 150 mm (2.83 x 2.83 x 5.91”) |
| Packaging Dimensions | 252mm x 110mm x 92mm (9.92 x 4.33 x 3.62”) |
| Weight | 288g(0.63lbs) |
