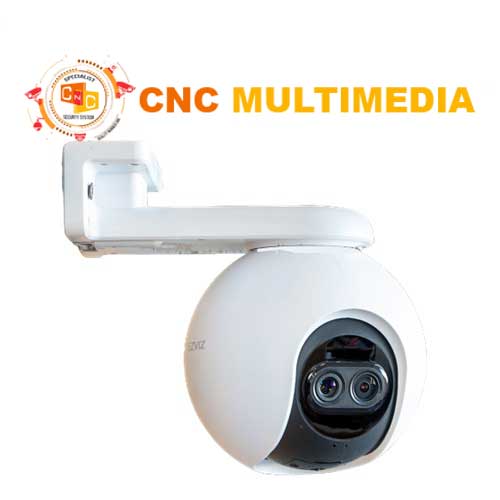

EZVIZ C8PF
Specifications
| Specifications | |
|---|---|
| Model | CS-C8PF (1080P) |
| Camera | |
| Image sensor | Dual-1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @ F1.6 + 12 mm @ F1.6 |
| PT Angle | Pan: 340°, Tilt: 80° |
| Minimum Illumination | 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Black & White Night | 30 m/ 98 ft |
| Video & Audio | |
| Max Resolution | 1920 × 1080 |
| Frame Rate | Max. 15fps, self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main profile |
| Video Bit Rate | Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps,11g :54Mbps,11n :72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Function | |
| Smart Alarm | AI-powered Human Shape Detection |
| Customized Alert Area | Supports |
| Audio | Supports mic |
| General Function | Anti-flicker, dual-stream, heart beat, password protection, watermark |
| Storage | |
| Local Storage | MicroSD card slot (Max. 512GB) |
| Cloud Storage | EZVIZ cloud storage |
| General | |
| Operating Conditions | -30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch) |
| Packaging Dimensions | 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch) |
| Weight | Product: 578 g (20.39 oz) |
| With package: 938 g (33.09 oz) | |
| In the box | |
| In the box | – C8PF Camera |
| – 1.5-Meter Power Adapter | |
| – Screw Kit | |
| – Waterproof Kit | |
| – Drill Template | |
| – Regulatory Information | |
| – Quick Start Guide | |
